ヒュンダイのための掘削機の振動変速機の減少R480LC-9S R520LC-9Sの振動変速機31QB-10141
生産の記述

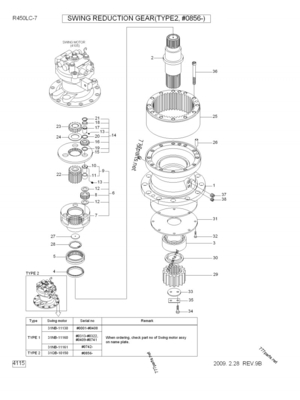

細部のイメージ
| # | 部品番号 | 部分名 | Qty. | 価格の要求 |
|---|---|---|---|---|
| *-2 | 31QB-10140 | 振動減速装置 | 1 | |
| 1 | XKAQ-00637 | 包装 | 1 | |
| 2 | XKAQ-00752 | SHAFT-DRIVE | 1 | |
| 3 | XKAQ-00026 | BEARING-ROLLER | 1 | |
| 4 | XKAQ-00032 | SEAL-OIL | 1 | |
| 5 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 6 | XKAQ-00753 | キャリア組立2 | 1 | |
| 7 | XKAQ-00075 | CARRIER-2 | 1 | |
| 8 | XKAQ-00023 | GEAR-PLANET 2 | 3 | |
| 9 | XKAQ-00643 | PIN組立2 | 3 | |
| 10 | XKAQ-00070 | PIN及びブッシュ | 1 | |
| N11 | XKAQ-00291 | ブッシュ2 | 1 | |
| 12 | XKAQ-00644 | WASHER-THRUST | 6 | |
| 13 | XKAQ-00048 | PIN-SPRING | 6 | |
| 14 | XKAQ-00754 | キャリア組立1 13を含んでいること |
1 | |
| 15 | XKAQ-00531 | キャリア1 | 1 | |
| 16 | XKAQ-00646 | 惑星ギヤ1 | 3 | |
| 17 | XKAQ-00415 | PIN 1 | 3 | |
| 18 | XKAQ-00030 | CAGE-NEEDLE | 3 | |
| 19 | XKAQ-00417 | PLATE-SIDE 1 | 3 | |
| 20 | XKAQ-00416 | PLATE-SIDE 2 | 3 | |
| 21 | XKAQ-00041 | RING-STOP | 3 | |
| 22 | XKAQ-00755 | GEAR-SUN 2 | 1 | |
| 23 | XKAQ-00648 | GEAR-SUN 1 | 1 | |
| 24 | XKAQ-00534 | PLATE-SIDE 3 | 1 | |
| 25 | XKAQ-00649 | GEAR-RING | 1 | |
| 26 | XKAQ-00072 | PIN-KNOCK | 2 | |
| 27 | XKAQ-00404 | PLATE-THRUST | 1 | |
| 28 | XKAQ-00074 | RING-STOP | 1 | |
| 29 | XKAQ-00287 | GEAR-PINION | 1 | |
| 30 | XKAQ-00018 | スペーサ | 1 | |
| 31 | XKAQ-00031 | PLATE-COVER | 1 | |
| 32 | XKAQ-00064 | BOLT-HEX | 8 | |
| 33 | XKAQ-00043 | PLATE-LOCK | 1 | |
| 34 | XKAQ-00042 | BOLT-HEX | 2 | |
| 35 | XKAQ-00029 | BEARING-ROLLER | 1 | |
| 36 | XKAQ-00065 | BOLT-SOCKET | 12 | |
| 37 | XKAQ-00049 | PLUG-PRESSURE | 1 | |
| 38 | XKAQ-00274 | プラグ | 2 |
