| MOQ: | 1pcs |
| 価格: | Negotiated price |
| 標準梱包: | 木製 |
| 配達期間: | 2-5日 |
| 支払方法: | T/T、Western Union、PayPal |
| 供給能力: | 月に500個 |
| Model | DH150W-7 |

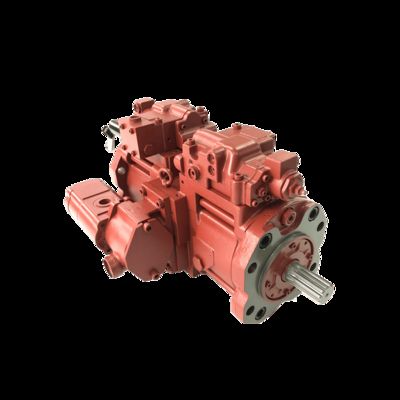

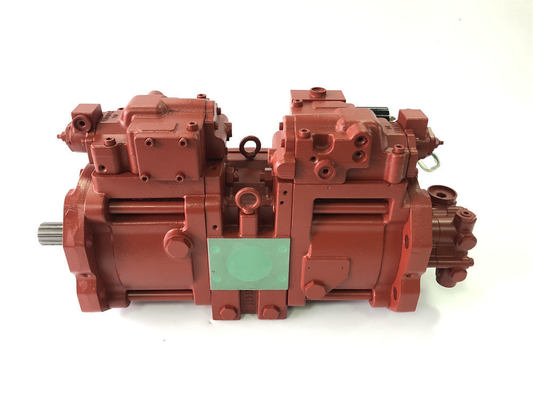

| Part Name | Hydraulic Main Pump |
| Part Number | K5V80DTP-HNOV-12T 2401-9236 2401-9236B |
| Place of Origin | Other Country |
| Condition | Original & OEM |
| Warranty | 6 months |
| MOQ | 1 pcs |
| Production Capacity | 1000pcs /Month |
| Standard or Nonstandard | Standard |
| Payment Term | L/C, T/T, Tradeassurance |
| Delivery Time | 1-3 days (depend on order) |
| Means of Transport | By Sea, Air or DHL |
| Guarantee | We will check and send detailed pictures to buyers for confirmation |
| # | Part No | Part Name | Comment | Qty. | Price request |
|---|---|---|---|---|---|
| 792 | 200034 | RING, BACK-UP | 2 | ||
| 808 | 201557 | NUT, HEX (ORNM16 | 4 | ||
| 824 | 202604 | RING, SNAP | 2 | ||
| - | 2401-9236 | MAIN PUMP | 1 | ||
| - | 2401-9236B | MAIN PUMP | 85 kg | 1 | |
| 111 | 113446A | SHAFT, DRIVE(FRONT) | 1 | ||
| 113 | 120413 | SHAFT, DRIVE(REAR) | 1 kg | 1 | |
| 114 | 113448 | COUPLING, SPLINE | 1 | ||
| 123 | 212031 | BEARING, ROLLER | 2 | ||
| 124 | 212032 | BEARING, NEEDLE | 2 | ||
| 127 | 113449 | SPACER, BEARING | 4 | ||
| 141 | 704212-PH | CYLINDER BLOCK ASS'Y(R.H) | 1 | ||
| 142 | 704237-PH | CYLINDER BLOCK ASS'Y(L.H) | 1 | ||
| 151 | 715220 | PISTON & SHOE ASS'Y | 2 SET | ||
| 153 | 113452 | PLATE, PUSH | 2 | ||
| 156 | 113453 | BUSH, SPHERICAL | 2 | ||
| 157 | 113454 | SPRING, CYLINDER | 18 | ||
| 158 | 113455 | SPACER | 2 | ||
| 211 | 113424A | PLATE, SHOE | 2 | ||
| 212 | 718420 | SWASH PLATE ASS'Y | 2 | ||
| 212 | 717009 | SWASH PLATE ASS'Y | 2 | ||
| 250 | 718423 | SUPPORT & SWASH | 2 | ||
| 251 | 113425A | SUPPORT, SWASH | 2 | ||
| 261 | 113426 | COVER, SEAL(F) | 1 | ||
| 271 | 113428 | CASING, PUMP | 2 | ||
| 310 | 704208 | VALVE BLOCK ASS'Y | 1 | ||
| 312 | 113429A | BLOCK, VALVE | 1 | ||
| 314 | 120412 | PLATE, VALVE(L.H.) | 1 | ||
| 401 | 113386 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 205517 | BOLT, HEX SOCKET HEAD | 4 | ||
| 467 | 108843 | PLUG, VP | 3 | ||
| 469 | 108848 | PLUG(PF3/8) | 2 | ||
| 490 | 211665 | EXPANDER | 15 | ||
| 530 | 718417 | TILTING PIN ASS'Y | 2 | ||
| 531 | 113379 | PIN, TILTING | 2 | ||
| 532 | 113381 | PISTON, SERVO | 2 | ||
| 534 | 113382 | STOPPER(L) | 2 | ||
| 535 | 113383 | STOPPER(R) | 2 | ||
| 548 | 113380 | PIN, FEEDBACK | 2 | ||
| 702 | 201658 | O-RING (1BG-30) | 2 | ||
| 710 | 201675 | O-RING 1BG85 | 2 | ||
| 717 | 201634 | O-RING 1BG-120 | 2 | ||
| 719 | 201633 | O-RING 1BG-115 | 2 | ||
| 724 | 201765 | O-RING 1BP8 | 18 | ||
| 726 | 201700 | O-RING 1BP14 | 2 | ||
| 728 | 201710 | O-RING 1BP18 | 3 | ||
| 732 | 201706 | O-RING 1BP16 | 2 | ||
| 774 | 212029 | SEAL, OIL | 1 | ||
| 885 | 216516 | PIN, 6X12 | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 4 | |
| 901 | 212033 | BOLT, EYE | 2 | ||
| 953 | 211227 | SET, SCREW | 2 | ||
| 954 | 113388 | SCREW, ADJUSTING | 2 | ||
| * | 2401-9236AKT | SEAL KIT, PUMP | 1 | ||
| 789 | 208454 | RING, BACK-UP | 5 kg | 2 |
| Pump Ass'y | Part Number | Compatible Models |
|---|---|---|
| Pump Ass'y | 705-41-08070 | PC10-7/PC15-3/PC20-7 |
| Pump Ass'y | 705-41-08001 | PC20/30-6/PC38UU-1 |
| Pump Ass'y | 705-86-14060 | PC20-5/30-5 |
| Pump Ass'y | 705-86-14000 | PC20-5/30-5 |
| Pump Ass'y/Main Pump | 705-41-08080 | PC25-1/PC38UU-2 |
| Pump Ass'y/Main Pump | 705-41-02470 | PC27MR-1/PC28UU-3 |
| Pump Ass'y/Main Pump | 705-41-02320 | PC27/35MR-1/PC28UU-3 |
| Pump Ass'y/Main Pump | 705-41-02700 | PC27/30MR-3 |
| Pump Ass'y/Main Pump | 705-41-08240 | PC28UU/UD/UG-2 |
| Pump Ass'y/Main Pump | 705-41-08100 | PC28UU/UD/UG-2 |
| Pump Ass'y/Main Pump | 705-52-10070 | PC30-1 |
| Pump Ass'y | 705-22-21000 | PC30-1 |
| Pump Ass'y | 705-56-14000 | PC30-3/PC20-3 |
| Pump Ass'y | 704-41-07500 | PC35MR-3 |
| Pump Ass'y | 705-41-07180 | PC35MR-2/3/PC38UU-3 |
| Pump Ass'y | 708-3S-04531 | PC40MR-1/PC45MRX-1 |
| Pump Ass'y | 708-35-04570 | PC40/50/55MR-2/3 |
| Pump Ass'y | 705-54-20010 | PC40-3 |
| Pump Ass'y | 705-41-08010 | PC40-6 |
| Pump Ass'y | 705-41-08090 | PC40-7C/PC50UU-2 |
| Pump Ass'y | 705-41-02310 | PC40/45MR-1 |
| Pump Ass'y | 705-41-01920 | PC40R/45R-8 |
| Pump Ass'y | 705-41-07040 | 45MRX/PC40MR |
| Pump Ass'y | 705-41-01620 | PC50UU/UD/UG/UUM-2 |
| Pump Ass'y | 705-52-20010 | PW60-1 |
| Pump Ass'y | 705-58-24010 | PC60-2 |
| Pump Ass'y | 705-56-24080 | PC60-3/PC60U-3 |
| Pump Ass'y | 704-24-24401 | PC60-5/PC75UU-1 |
| Pump Ass'y | 705-40-01370 | PC75UD/UU-2 |
| Pump Ass'y | 705-24-29090 | PC75UU/UD-3/78US-5 |
| Pump Ass'y | 705-22-30150 | PC75-3/PC95R-2/PC110R-1 |
| Pump Ass'y | 708-3T-04610 | PC78UU-6 |
| Pump Ass'y | 708-3T-04620 | PC78US/PC80MR |
| Pump Ass'y | 705-52-20050 | PC80-1 |
| Pump Ass'y | 705-54-20000 | PC80-1/PC40-1/PC40-2 |
| Pump Ass'y | 705-56-34000 | PC120-1/2 |
