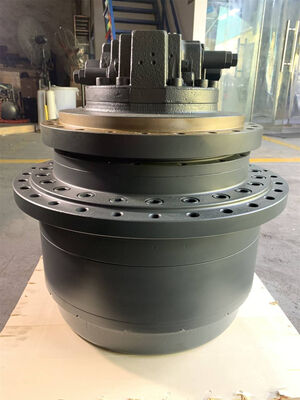

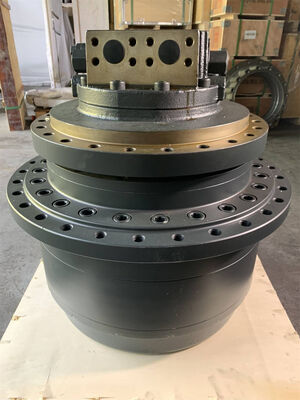

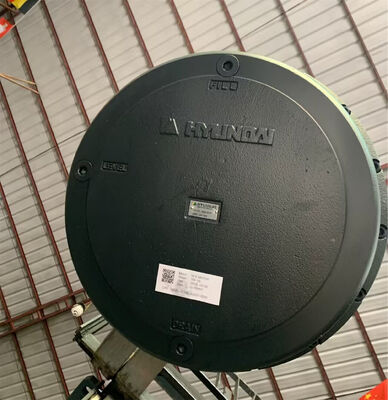

R430LC-9SH R430-9SH Final Drive for Hyundai Excavator spare parts 39QB-41100 Travel Motor Assembly

R430LC-9SH R430-9SH Final Drive for Hyundai Excavator spare parts 39QB-41100 Travel Motor Assembly

MOQ: 1個
価格: Negotiable Price
標準梱包: 木製のケースパッキング
配達期間: 3-7days
支払方法: L/C、T/T、Paypal、Trade Assurance
供給能力: 1000個/月
詳細情報
起源の場所
中国
ブランド名
Belparts
モデル番号
R430LC-9SH R430-9SH
部品名:
トラベルモーターアシ
応用:
掘削機械の機器
部品番号:
39QB-41100
材料:
鋼鉄
状態:
オリジナルで新品
出荷:
海、空気。急行
パッキング:
木製ケース
ハイライト:

Hyundai excavator final drive

,

R430LC-9SH travel motor assembly

,

39QB-41100 excavator spare parts

製品の説明
R430LC-9SH R430-9SH Final Drive for Hyundai Excavator spare parts 39QB-41100 Travel Motor Assembly

Our factory is a set of hydraulic parts research and development, manufacturing, sales as one of the high-tech modern factory which integrates research and development, manufacture and sales of hydraulic components. Its headquarters is located in Linxi, Hebei Province, which is known as the Canal CapitalofChinaBearingWorld.Founded in 2005,Our factory started with the production of excavator bearings as its main business,and entered the field of reducers in 2013, and completed the mass production. It is famous for its high cost-effective productsand achieved the dream of domestic excavator users "replace rather than repair". It is the only domestic excavator engineering machinery enterprise which pushed the development and manufacturing of reducers to the road of industrialization. After gaining capital and management experience for decades, Our factory successfully transformed to the field of hydraulic research and production.

Product Specifications
Brand Belparts
Spare Parts Name Excavator Travel Motor Assy
Model R430LC-9SH R430-9SH
Warranty 12 Months
MOQ 1pcs
Delivery Terms After payment 3-7days
Payment Terms L/C, T/T, Paypal, Trade Assurance

R430LC-9SH R430-9SH Final Drive for Hyundai Excavator spare parts 39QB-41100 Travel Motor Assembly 0



Parts on group TRAVEL MOTOR (1/2, TYPE 1):

Pos. Part No Qty Parts name Comments
* 39QB - 40100 [1] TRAVEL MOTOR ASSY
* 39QB - 40101 [1] TRAVEL MOTOR ASSY
* - 1 39QB - 41100 [1] TRAVEL MOTOR
2 39QB - 41100 [1] PLUG
27 39QB - 41140 [1] PIN - PARALLEL
28 39QB - 41420 [1] SPRING
K29 Y172 - 049004 [1] O - RING
30 S471 - 800404 [1] PIN - SPRING
31 39QB - 41450 [2] PIN - PARALLEL
32 39QB - 41450 [2] PIN - PARALLEL
33 39QB - 41140 [1] COVER - REAR
34 39QB - 41150 [1] MAIN SPOOL ASSY
34 39QB - 41200 [2] SEAT - SPRING
35 39QB - 41200 [2] PLUG
36 39QB - 41540 [2] SPRING
K37 5632 - 040004 [2] O - RING
38 39QB - 41330 [2] RESTRICTOR
39 39QB - 41520 [2] SPRING
40 39QB - 41200 [2] PLUG
K41 5631 - 011004 [2] O - RING
K42 5631 - 011004 [2] O - RING
K43 5631 - 011004 [2] O - RING
K44 5631 - 011004 [2] O - RING
45 39QB - 41330 [2] RELIEF VALVE ASSY
46 39QB - 41330 [1] SPOOL
47 39QB - 41200 [2] PLUG
48 39QB - 41200 [1] SEAT - SPRING
49 39QB - 41450 [1] PIN - PARALLEL
50 39QB - 41200 [1] SPRING
51 39QB - 41770 [1] CONNECTOR
K52 5631 - 011004 [2] O - RING
53 5 - NBR - 130010 [10] BOLT - SOCKET
54 39QB - 41760 [3] VALVE - CHECK
55 39QB - 41760 [3] SPRING
56 39QB - 41770 [3] PLUG
57 39QB - 41100 [1] RESTRICTOR
58 39QB - 41880 [1] NAME PLATE
59 39QB - 41880 [2] RIVET
60 39QB - 41450 [1] PLUG
* - 2 39QB - 41450 [1] TRAVEL REDUCTION GEAR SEE 4140
K 39QB - 41770 [1] PLUG KIT SEE ILLUSTR
K 39QB - 41770 [1] ROTARY KIT SEE ILLUSTR
K 39QB - 41770 [1] CYLINDER BLOCK KIT SEE ILLUSTR
K 39QB - 41880 [1] RETAINER KIT SEE ILLUSTR
K 39QB - 41880 [1] O - RING KIT SEE ILLUSTR
K 39QB - 41770 [1] D - RING KIT SEE ILLUSTR





Our factory spends agreatdeal ofmoneyto buildhigh-tech modern factories, which covers an area of more than 200,000 square meters and aconstructionarea of 130,000 square meters. It has strong scientific and technological strengths, alarge number of talented people,more than 1200 employees, more than 40 senior and middle-level technical personnel, and a special scientific research institution established under the cooperation of Yanshan University, gaining 27 technical patents so far. In 2016, Our factory imported more than 500 sets of high-end production and testing equipment from home and abroad, creating an "automatic dust-free production workshop for hydraulic components", with an annual output of more than 180,000 hydraulic pumps, hydraulic motors and reducers. The company sells products to all over the country, and its products are also exported to Southeast Asia and other countries. It has won wide praise from domestic and foreign customers.
